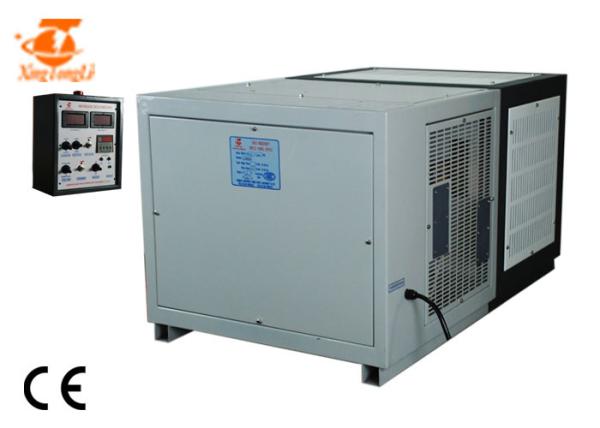

Single Phase Reverse Polarity Electroplating Machine Rectifier 2000A 15V 220V

Chengdu Xingtongli Power Supply Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Single Phase Reverse Polarity Electroplating Machine Rectifier 2000A 15V 220V

Brand Name : Xingtongli

Model Number : GKD(M)(H)15-2000CVC

Certification : CE

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal

Supply Ability : 100 SET/month

Delivery Time : 10~14 working days

Packaging Details : Wooden case 980*600*540mm

Application : electrocoagulation or electrolysis

Efficiency : >85%

Control way : Remote control

Cooling way : Water cooling

Color : black and white

Type : AC to DC

Contact Now

2000A 15V 220V single phase reverse polarity electroplating machine rectifier

2000A 15V 220V single phase reverse polarity electroplating machine rectifier is customized by one Columbian customer to electroplate hard chrome. This unit has reversing polarity function. To electroplate hard chrome on steel, pls choose this type.

Some pics was followed

Single Phase Reverse Polarity Electroplating Machine Rectifier 2000A 15V 220V

Water pipe. As cooling way of this unit is water cooling

Single Phase Reverse Polarity Electroplating Machine Rectifier 2000A 15V 220V

Remote control box

Single Phase Reverse Polarity Electroplating Machine Rectifier 2000A 15V 220V

Application

Different volt and current has different applications

Single Phase Reverse Polarity Electroplating Machine Rectifier 2000A 15V 220V

Specification

SPECIFICATIONS FOR GKD(M)(H)15-2000CVC
Input AC 220V±10% 3phase 50/60Hz
Output DC Volt(+/-) 0~15V Adjustable
Current(+/-) 0~2000A Adjustable
Power 18KW
Efficiency >85%
Reverse time 0~99 hour automatical
Switching Frequency 20KHz
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
(Temperature)
-10℃~50℃ Control mode Panel control
Remote control
Net weight 100kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 940*560*420 Cooling way Air cooling
Features
Single Phase Reverse Polarity Electroplating Machine Rectifier 2000A 15V 220V

1. 0~10V, 4~20mA,PLC,Timer, Ampere-minute/hour counter, HMI can be provided


2. Control mode: Local control or Remote control(the length of cable is determined by customers)


3. Japan IGBT(the default choice) or Germany IGBT are adopted


4. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function


5. Easy to operate and repaire

Other advantages

Single Phase Reverse Polarity Electroplating Machine Rectifier 2000A 15V 220V

1. Cabinet
a: Adopting completely digitalized machining
b: Adopting cold rolled production of iron steel sheet, after phosphorization, zinc plating, plastic spray, the rectifier gets better structural strength and anti-corrosion.
c: Reasonable structure design, isolated inverter design, rectification part is convenient to disassemble and mend because of its neat assembling.
d: Radiator gets better cooling effect because of its 1.5 times capacity.

2 Electric control system
a: The rectifier adopts full bridge phase-shifted soft switch control, ensuring the lowest power loss of IGBT. The capacity of IGBT become 3 times bigger.
b: The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.
c: Magnetic deviation automatic correction circuit is adopted and the total power of magnetic core gets enlarged 1.5 times.

3 Schottky Barrier Diode
a: It has been expanded 4 times.

4 All the controlling boards get antiseptic treatment with imported lacquer.

How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.

Single Phase Reverse Polarity Electroplating Machine Rectifier 2000A 15V 220V

Single Phase Reverse Polarity Electroplating Machine Rectifier 2000A 15V 220V

Our service

Pre sale service
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.
3. Inner part pictures can be offered
4. OEM and ODM is accepted

After sale service
1. To resolve your problems within 24hours.
2. Replacement parts can be offered for free within 1 year warranty
3. The machine is damaged by quality and can be changed for free within 1 year
4. The client can check the rectifier before the factory by themselves or test video can be offered

FAQ

1. Q: Are u factory or tranding company?

A: We are factory can offer more cheaper price but the same good quality.

2. Q: Where are ur company?

A: Our company is located in Chengdu City which is one of the fastest growing city in China.

3. Q: If I want to visit your factory, how can I go to there?

A: You just need to tell us when do come to our company, we will pick u up at the airport.

4. Q: How can I do a payment?

A: You can choose T/T, L/C, D/A, D/P and other payments .

5. Q: How can I get my goods?

A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.

6. Q: If problems of my rectifiers occured, what should I do?

A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
